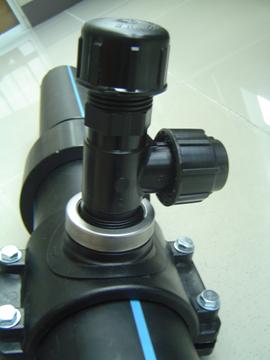

NEXOR WaterTap

















NEXOR tapping ferrule is the easiest way to tap water lines from mains. NO DRILLING NECESSARY. NEXOR tapping ferrule incorporates its own cutter which can easily bore into PE pipes without the need for power tools. Additionally, NEXOR tapping ferrule has a built-in stopper, which can serve to open or close the water line.

How to use Water Tap







































1. Fit the PP tapping ferrule onto the PP clamp saddle outlet.

2. Clamp the PP saddle onto the main pipe (the pipe to be tapped) by fastening the bolts. (figure1) Make sure the rubber gasket sits properly in the groove of the saddle.

3. Connect the outlet pipe ( or the communication pipe) to the tapping ferrule.

4. Perform tapping by removing the cap and using the     T-bar to crank the steel cutter through the pipe wall. See figure 2 and 3. ( The T- bar is basically an Allen tool with a T handle. This tool is available from NEXOR PIPES. )

5. The cut portion of the pipe is NOT to be discarded. It is to remain inside the cutter to act as a stopper. When cutter with the piece of plastic is at the bottom position, the tapping ferrule is in the close position. (i.e. water does not flow out of the tapping ferrule)

6. Turn the T-bar in the opposite direction until it reaches the top. (At this position, the ferrule is in the open position i.e. water flows) See figure 4

7. Remove the T-bar and tighten the cap.



PRODUCT

NEXOR WaterTap

APPLICATION

For tapping

+of service connection from water mains

TYPES

Injection molded and fabricated

INSTALLATION

Use of open wrench and allen wrench

SIZES AVAILABLE

1 1/4” MAIN X 25 MM TAP

1 1/4” MAIN X 32 MM TAP

(FITS TO A CLAMP SADDLE WITH 1 1/4” OPENING)

NOTES

Easy to install. Live tapping can be done (no need to turn off the water line)
